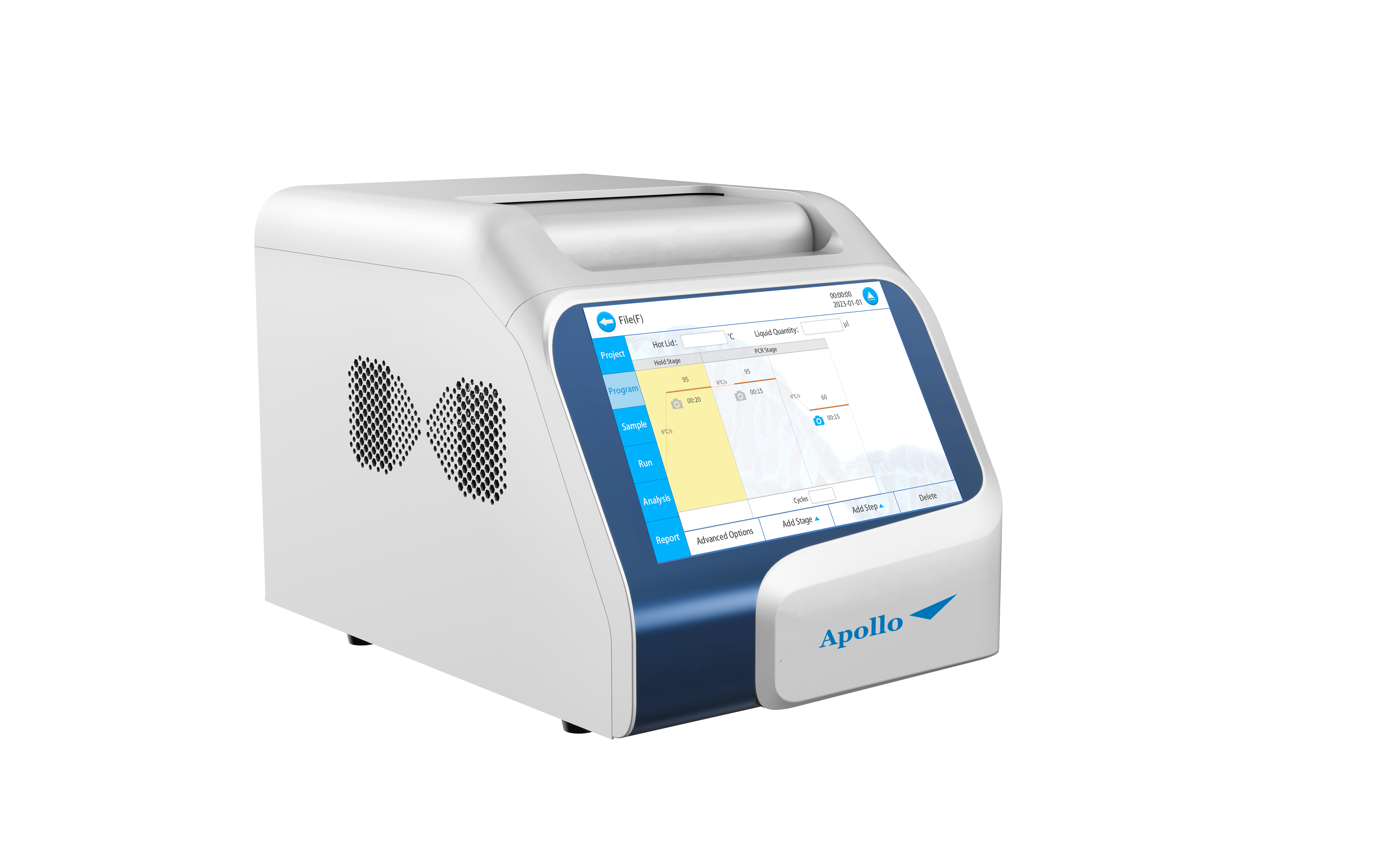

Thermax RT - Real-time Fluorescent Quantitative PCR Analyzer
PRODUCT FEATURES
Industrial-grade customized semiconductor coolers+ Intelligent PID temp. control system=Rapid temp. change+precision temp. Control
Electric automatic hot lid, automatic pressing
Automatic gain, the system intelligently selects the best gain
High performance LED+ high-sensitivity PMT+all fiber photoelectric module= extremely fast fluorescence scanning +top signal stability
Large Android touch screen, tailored Android analysis software, two touches to start experiment fastest, can also be connected to the computer, keyboard and mouse, control at will
Prepare 5μL reaction system to amplify on Apollo Thermax RT and one famous brand qPCR instrument respectively,and compare the amplification effect and reagent evaporation.
Amplification curve of one famous brand qPCR instrument
Amplification curve of Apollo qPCR instrument
5μL reaction system of one famous brand qPCR instrument
5μL reaction system of Apollo qPCR instrument
Prepare 6 kinds of gradient reaction system(concentraton: 10 ~10 ) to amplify on Apollo Thermax RT and one famous brand qPCR instrument respectively, compare standard curve
Standard curve of Apollo qPCR instrument
Standard curve of one famous brand qPCR instrument
PRODUCT PARAMETER
| Model | Thermax RT | ROX calibration | No need | ||
|---|---|---|---|---|---|
| Sample quantity | 96 well × 0.2ml (Optional 96 well × 0.1ml) | Temp. control metho | Thermoelectronic | ||
| Consumable type | 0.2 mL 96 well plate (Half-skirted, Non-skirted), 8-strips tubes, Single tube (bottom should be transparent) | Ramp rate (max) | 6℃/s | ||
| Reaction volume | 5-100 μL | Temp. accuracy | ±0.1℃ | ||
| Dynamic range | 1-10¹⁰ copies | Temp. uniformity | ≤±0.2℃ (55℃) | ||
| Sample repeatability | CV ＜ 1% | Temp. range of hot lid | RT.+5℃-110℃ | ||
| Sample linear | |r| ≥ 0.999 | Temp. gradient range | 0.1-36℃ | ||
| Automatic hot lid | The hot lid can be controlled by touch button to automatically press the tube | Time increase/decrease | 0.1~9min59s, long PCR is available | ||
| Fluorescence channel | 5 | Temp. Increase/decrease | 0.1~9.9℃, touchdown PCR is available | ||
| Fluorescence dyes |
F1: FAM, SYBR Green I F2: VIC, HEX, TET, JOE, TAMRA, CY3, NED F3: ROX/TexRed F4: CY5 F5: CY5.5 F6: Optional |
Software function | Supports absolute quantitative, relative quantitative, melting curve, HRM, SNP, and other functions | ||
| Operation method | 10.1 inch colorful Android touchscreen, simple and convenient. Windows system computer can also connect to it | ||||
| Safety protection and alarm | Overheat protection and alarm for block and hot lid | ||||
| Excitation light source | High brightness and long-life LED excitation light source | Data export | Excel, TXT | ||
| Detector | PMT | Software language | English | ||
| Excitation wavelength |
Channel1: 470nm Channel2: 523nm Channel3: 571nm Channel4: 628nm Channel5: 678nm |
Voltage range | 100-240V | ||
| Interface mode | USB2.0 / HDMI | ||||
| Detection wavelength |
Channel1: 525nm Channel2: 564nm Channel3: 612nm Channel4: 692nm Channel5: 718nm |
Power (max) | 1000W | ||
| Dimension (D×W×H) | 473×335×330mm | ||||
| Single channel scanning time | 1.5s | Net weight (kg) | 26 | ||
