PCR thermal Cyclers
Thermax RT Mini - Real-time Fluorescent Quantitative PCR Analyzer
- New generation Android analysis software Intelligent and convenient system
- Specially made TE sheet Ultimate ramp rate experimental environments.
- Automatic gain, Automatic curve control.
- Patent PID temperature control. Stable and precise temperature control.
- All fiber module, Accurate and stable signal.
Prepare 4 kinds of gradient reaction system(concentraton: 10 ~120 ) 5to amplify on Apollo Thermax RT Mini and one Famous brand qPCR instrument respectively, compare results
The result of Apollo qPCR instrument

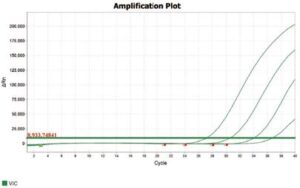

The result of one famous brand qPCR instrument
Prepare a reaction system with a concentra3tion of 10 and conduct four repeated experiments on Apollo Thermax RT Mini and one famous brand qPCR instrument respectively, compare results

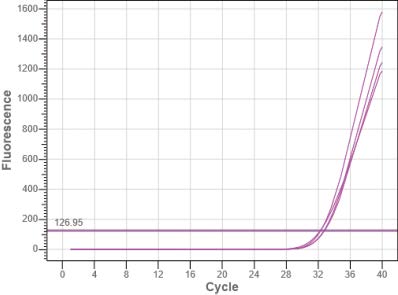

The result of Apollo qPCR instrument

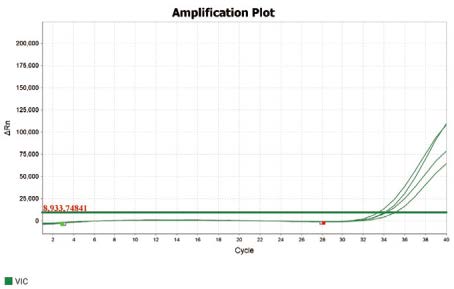

The result of one famous brand qPCR instrument
PRODUCT PARAMETER
| Model | Thermax RT Mini | Category | Specifications |
|---|---|---|---|
| Sample quantity | 16 well × 0.2ml | Temp. control method | Thermoelectronic |
| Consumable type | 0.2 mL 8-strips tubes, Single tube (bottom should be transparent) | Ramp rate (max) | 6℃/s |
| Reaction volume | 10-100 μL | Temp. accuracy | ±0.1℃ |
| Dynamic range | 1-10¹⁰ copies | Temp. uniformity | ≤±0.2℃ (55℃) |
| Sample repeatability | CV ＜ 1% | Temp. range of hot lid | RT.+5℃-110℃ |
| Sample linear | |r| ≥ 0.999 | Temp. gradient range | / |
| Hot lid | Manual hot lid | Time increase/decrease | 0.1~9min59s, long PCR is available |
| Fluorescence channel | 5 | Temp. Increase/decrease | 0.1~9.9℃, touchdown PCR is available |
| Fluorescence dyes | F1: FAM, SYBR Green I, SYTO 9, EvaGreen, LC Green F2: VIC, HEX, TET, JOE, TAMRA, CY3, NED F3: ROX/TexRed F4: CY5 F5: CY5.5 | Software function | Support absolute quantitative, relative quantitative, melting curve, HRM, SNP and other functions. |
| Safety protection and alarm | Over heat protection and alarm for block and hot lid | ||
| Excitation light source | High brightness and long-life LED excitation light source | Data export | Excel, TXT |
| Detector | PD | Software language | English |
| Excitation wavelength | Channel1:470nm Channel2：523nm Channel3：571nm Channel4：628nm Channel5：678nm | Voltage range | 100-240V |
| Interface mode | USB | ||
| Detection wavelength | Channel1:525nm Channel2：564nm Channel3：612nm Channel4：692nm Channel5：718nm | Power(max) | 350W |
| Dimension(D×W×H) | 280×187×193 mm | ||
| Single channel scanning time | ＜1s | Net weight (kg) | 6.9 |
